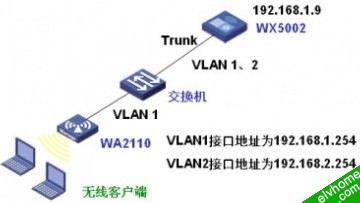

一、组网图及需求
WX5002的IP地址为192.168.1.9。
WA2110属于VLAN1，无线客户端属于VLAN2，WX5002与交换机之间为Trunk，通过VLAN1、2。
交换机VLAN1、VLAN2的接口地址分别是192.168.1.254、192.168.2.254。
无线客户端的网关在交换机上，为192.168.2.254。
SSID的名称为“H3C”，并且隐藏此SSID，客户端无法发现此SSID，只能通过手动添加的方式连接此SSID。
WA2110序列号为000000000000000000000000。
WX5002的配置
#
version 5.20, Release 1106P01
#
sysname H3C
#
domain default enable system
#
vlan 1
#
vlan 2
#
domain system
access-limit disable
state active
idle-cut disable
self-service-url disable
#
dhcp server ip-pool 1
network 192.168.1.0 mask 255.255.255.0
gateway-list 192.168.1.254
expired day 3
#
dhcp server ip-pool 2
network 192.168.2.0 mask 255.255.255.0
gateway-list 192.168.2.254
expired day 3
#
wlan rrm
dot11a mandatory-rate 6 12 24
dot11a supported-rate 9 18 36 48 54
dot11b mandatory-rate 1 2
dot11b supported-rate 5.5 11
dot11g mandatory-rate 1 2 5.5 11
dot11g supported-rate 6 9 12 18 24 36 48 54
#
wlan service-template 2 clear
ssid H3C
beacon ssid-hide
bind WLAN-ESS 2
authentication-method open-system
service-template enable
#
interface NULL0
#
interface Vlan-interface1
ip address 192.168.1.9 255.255.255.0
#
interface Vlan-interface2
ip address 192.168.2.9 255.255.255.0
#
interface GigabitEthernet1/0/1
port link-type trunk
port trunk permit vlan all
#
interface GigabitEthernet1/0/2
port link-type trunk
port trunk permit vlan all
#
interface M-Ethernet1/0/1
#
interface WLAN-ESS2
port access vlan 2
#
wlan ap ap1 model WA2100
serial-id 000000000000000000000
radio 1
service-template 2
radio enable
#
ip route-static 0.0.0.0 0.0.0.0 192.168.1.254
#
dhcp enable
#
user-interface aux 0
user-interface vty 0 4
#
return
在客户端无法通过搜索扫描的方式发现H3C的无线网络，只能通过手动添加才能连接。
