一、组网需求
WX5002、WA2110、H3C POE交换机、便携机（安装有11b/g无线网卡），要求不同的SSID对应使用不同的vlan

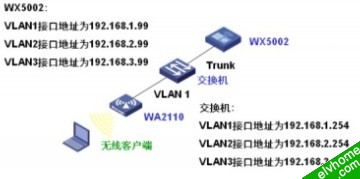

二、组网图
WA2110的序列号为210235A22W0079000212。
WX5002上有两个SSID，分别是h3c-vlan2和h3c-vlan3。
SSID h3c-vlan2的WEP加密的密钥为12345，密钥索引为1。
SSID h3c-vlan3的WEP加密的密钥为67890，密钥索引为2。
无线客户端连接h3c-vlan2时属于VLAN 2，192.168.2.0/24网段。
无线客户端连接h3c-vlan3时属于VLAN 3，192.168.3.0/24网段。
三、WX交换机的典型配置
#
version 5.20, Release 1106P01
#
sysname H3C
#
domain default enable system
#
vlan 1
#
vlan 2 to 3
#
domain system
access-limit disable
state active
idle-cut disable
self-service-url disable
#
dhcp server ip-pool pool1
network 192.168.1.0 mask 255.255.255.0
gateway-list 192.168.1.254
expired day 3
#
dhcp server ip-pool pool2
network 192.168.2.0 mask 255.255.255.0
gateway-list 192.168.2.254
expired day 3
#
dhcp server ip-pool pool3
network 192.168.3.0 mask 255.255.255.0
gateway-list 192.168.3.254
expired day 3
#
wlan service-template 2 crypto
ssid h3c-vlan2
bind WLAN-ESS 2
authentication-method open-system
cipher-suite wep40
wep default-key 1 wep40 pass-phrase 12345
service-template enable
#
wlan service-template 3 crypto
ssid h3c-vlan3
bind WLAN-ESS 3
authentication-method open-system
cipher-suite wep40
wep default-key 2 wep40 pass-phrase 67890
wep key-id 2
service-template enable
#
wlan rrm
11a mandatory-rate 6 12 24
11a supported-rate 9 18 36 48 54
11b mandatory-rate 1 2
11b supported-rate 5.5 11
11g mandatory-rate 1 2 5.5 11
11g supported-rate 6 9 12 18 24 36 48 54
#
interface NULL0
#
interface Vlan-interface1
ip address 192.168.1.99 255.255.255.0
#
interface Vlan-interface2
ip address 192.168.2.99 255.255.255.0
#
interface Vlan-interface3
ip address 192.168.3.99 255.255.255.0
#
interface GigabitEthernet1/0/1
port link-type trunk
port trunk permit vlan all
#
interface GigabitEthernet1/0/2
#
interface M-Ethernet1/0/1
#
interface WLAN-ESS2
port access vlan 2
#
interface WLAN-ESS3
port access vlan 3
#
wlan ap ap1 model WA2100
serial-id 210235A22W0079000212
radio 1
service-template 2
service-template 3
radio enable
#
ip route-static 192.168.2.0 255.255.255.0 192.168.2.254
ip route-static 192.168.3.0 255.255.255.0 192.168.3.254
#
dhcp enable
#
user-interface aux 0
user-interface vty 0 4
#
return
